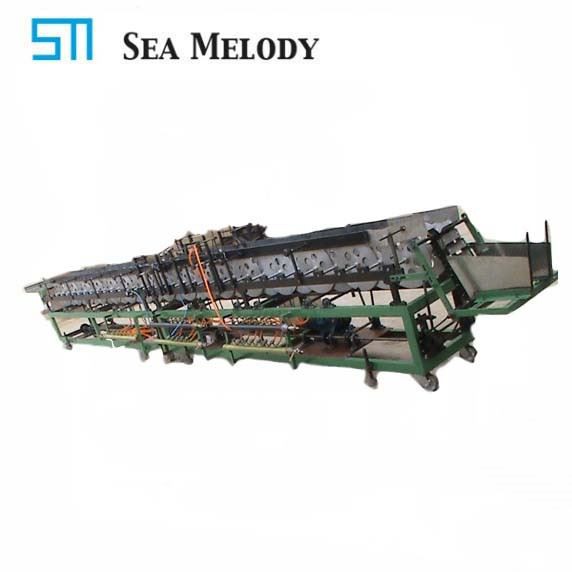

SM-J6 Automatic Beaker Machine
Overview
The beaker making machine (glass bottom machine )are suitable for low/high borosilicate glass tubes. Double length glass tube are released one by one into the production line,both edges are burnt in two steps, conveyor brings tubes into the bottom forming station to form the bottom of beaker and split into two beakers, the beaker triangle mouth is made finally. We have specifications for three kinds of beaker machines as below:
Parameter
Automatic Beaker Machine A (50-150ml)
Model | Suitable for (mm) | Output | Consumption | Dimension (M) | Weight (kg) |
SM-J6 | Diameter: 42-58 Thickness: 1.2-1.8 | 1500 (pcs/h) (100ml) | 2.2KWH Gas: 4.2KG/H Oxy: 35 l/h | 9.2*1.1*1.4 | 1400 |
Automatic Beaker Machine B (100-500ml)
Model | Suitable for (mm) | Output | Consumption | Dimension (m) | Weight (kg) |
SM-J6 | Diameter: 50-83 Length: 70-200 Thickness: 1.8-3 | 1500 (pcs/h) (100ml) | 1.5KWH Gas: 5.5KG/H Oxy: 46 l/h | 11.5*1.1*1.4 | 1850 |
Automatic Beaker Machine C (500-1000ml)
Model | Suitable for (mm) | Output | Consumption | Dimension (m) | Weight (kg) |
SM-J6 | Diameter: 65-110 Length: 100-280 Thickness: 1.8-3 | 700 (pcs/h) (100ml) | 2.2KWH Gas: 8.5KG/H Oxy: 70 l/h | 13.2*1.22*1.46 | 2300 |
Details
Sample
